Ifor Williams Flatbed
Ifor Williams Flatbed

From the smallest LT85 to the largest LM187, all flatbed models are built around a welded steel, galvanized chassis fitted with bolt-on tapered drawbars and the Ifor Williams beam axle and leaf sprung suspension.

Whenever there’s work to be done you’ll find a flatbed model to help you do it. Our flatbed trailers epitomise the flexibility of our commercial range. Purchasers from roofers to gardeners, small businesses to local authorities have all found that this range of trailers can carry heavy or bulky loads with ease.

The flatbed range is offered in width options ranging from 1.52m/5’ to 2.29m/7’6” and length options from 2.44m/8’ to 5.49m/18’.

The maximum gross weight for the LT model is 2000kg, whilst the heavier LM models offer between 2700kg and 3500kg.

The flatbed trailer range is normally supplied with twin axles. Tri-axle options are available on our LM6 series models in lengths over 12’.

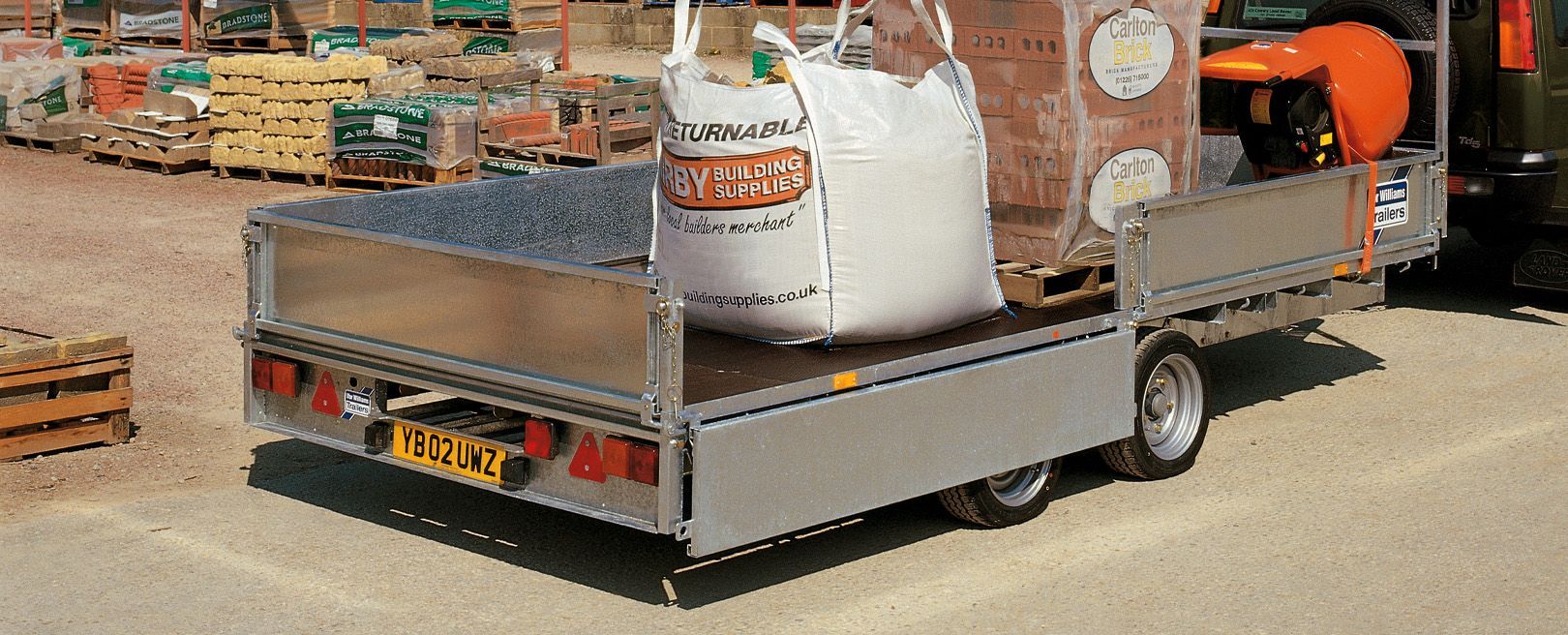

Tough, adaptable and easy to maintain, all models are fitted with a tough resin-coated plywood platform as standard. An option of aluminium treadplate covering is available, along with recessed lashing rings. Trailers can be further enhanced with accessories such as a headboard, ladder rack, dropsides or meshside extensions.

With the addition of a winch, rear propstands and either loading skids or the full-width ramp (1.83m/6’ in length), the versatile flatbed can be used to carry loads, such as small plant, ride-on mowers, mixers, shredders, rollers and a multitude of mobile plant equipment.

Skid Rail & Holder

Skid rail & holder The LT/LM range (and TT105/126) feature a skid mounting rail and skid holder built into the rear of the trailer (1.83m/2.44m or 6’/8’ skids are optional extras).

Specifications

Model Tyres Gross Weight Unladen Weight Internal Length Internal Width Overall Length Overall Width
LT85 145/70R13C 2000kg 450kg 2.44m/8' 1.52m/5' 3.80m 1.60m
LT105 145/70R13C 2000kg 510kg 3.01m/9'9" 1.68m/5'5" 4.35m 1.75m
LT125 145/70R13C 2000kg 565kg 3.62m/11'9" 1.68m/5'5" 5.00m 1.75m
LT106 145/70R13C 2000kg 555kg 3.01m/9'9" 1.98m/6'5" 4.35m 2.10m
LT126 145/70R13C 2000kg 615kg 3.62m/11'9" 1.98m/6'5" 5.00m 2.10m
LT146 145/70R13C 2000kg 660kg 4.23m/13'9" 1.98m/6'5" 5.60m 2.10m
LM85 195/60R12C 2700kg 495kg 2.44/8' 1.52m/5' 3.80m 1.60m
LM105 195/60R12C 2700kg 575kg 3.01m/9'9" 1.68m/5'5" 4.35m 1.75m
LM125 195/60R12C 2700kg 620kg 3.62m 1.68m 5.00m 1.75m
LM85 195/60R12C 3500kg 525kg 2.44m/8' 1.52m/5' 3.80m 1.60m
LM105 195/60R12C 3500kg 605kg 3.01m/9'9" 1.68m/5'5" 4.35m 1.75m
LM125 195/60R12C 3500kg 650kg 3.62m/11'9" 1.68m/5'5" 5.00m 1.75m
LM106 195/60R12C 3500kg 620kg 3.01m/9'9" 1.98m/6'5" 4.35m 2.10m
LM126 195/60R12C 3500kg 675kg 3.62m/11'9" 1.98m/6'5" 5.00m 2.10m
LM146 195/60R12C 3500kg 735kg 4.23m/13'9" 1.98m/6'5" 5.60m 2.10m
LM166 195/60R12C 3500kg 795kg 4.77m/15'6" 1.98m/6'5" 6.20m 2.10m
LM186 195/60R12C 3500kg 855kg 5.47m/17'9" 1.98m/6'5" 6.85m 2.10m
LM126T (Tri-Axle) 195/60R12C 3500kg 785kg 3.62m/11'9" 1.98m/6'5" 5.00m 2.10m
LM146T (Tri-Axle) 195/60R12C 3500kg 845kg 4.23m/13'9" 1.98m/6'5" 5.60m 2.10m
LM166T (Tri-Axle) 195/60R12C 3500kg 905kg 4.77m/15'6" 1.98m/6'5" 6.20m 2.10m
LM186T (Tri-Axle) 195/60R12C 3500kg 965kg 5.47m/17'9" 1.98m/6'5" 6.85m 2.10m
LM127 195/60R12C 3500kg 705kg 3.62m/11'9" 2.25m/7'4" 5.00m 2.30m
LM147 195/60R12C 3500kg 775kg 4.23m/13'9" 2.25m/7'4" 5.60m 2.30m
LM167 195/60R12C 3500kg 845kg 4.77m/15'6" 2.25m/7'4" 6.20m 2.30m
LM187 195/60R12C 3500kg 915kg 5.47m/17'9" 2.25m/7'4" 6.85m 2.30m
LM147T (Tri-Axle) 195/60R12C 3500kg 885kg 4.23m/13'9" 2.25m/7'4" 5.60m 2.30m
LM167T (Tri-Axle) 195/60R12C 3500kg 955kg 4.77m/15'6" 2.25m/7'4" 6.20m 2.30m
LM187T (Tri-Axle) 195/60R12C 3500kg 1025kg 5.47m/17'9" 2.25m/7'4" 6.85m 2.30m

Features

Chassis
The underside of the trailer features a galvanized steel chassis and drawbar, for longlasting corrosion protection.
Floor
Phenol-coated on both sides, our ply platform floors feature an embossed grip pattern on the upper surface.
Beam Axle & Leaf Spring Suspension
The Ifor Williams beam axle system increases stability and reliability whilst ensuring minimum maintenance.
Spare Wheel
A mounting bracket and spare wheel are fitted as standard to all Ifor Williams trailers for complete peace of mind.
Coupling Head
The lockable low-profile coupling head ensures optimum clearance of 4×4 rear doors.
Loading Skids
Fitted to the GP and GX models, these are adjustable for width when deployed.
