Tiltbed

Ifor Williams Tiltbed

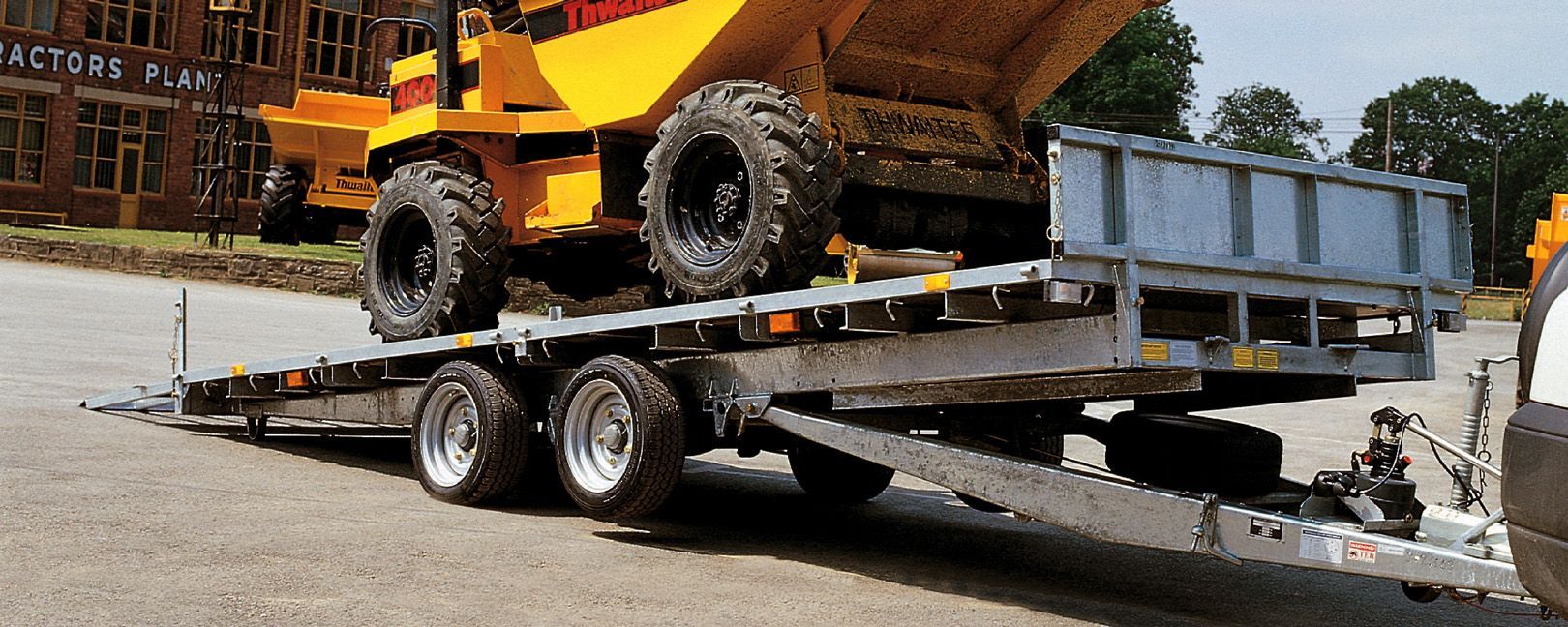

Introducing the tiltbed range from Ifor Williams Trailers, designed specifically for the landscape and car transportation industry. Choose from six trailer models all with a very generous overall width of 2100mm and four length options, two of which are our first tiltbed tri-axle models.

Trailers feature a plywood floor centre which is flush with steel outer edges and are suitable for a range of vehicles including rollers and excavators. There is no raised rail around the bed of the trailer, making it a completely flat surface.

The range is ideal for loading ground care machinery or for users requiring a versatile Car Transporter which also offers the benefits of a standard flatbed trailer.

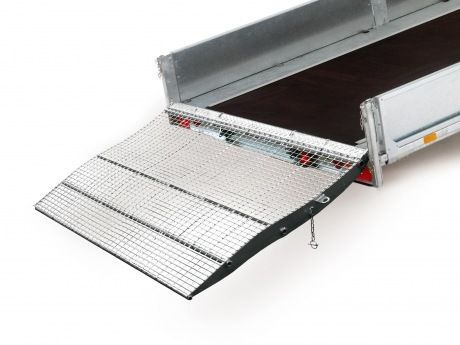

Trailers have been designed so that ramp and skid options can be interchanged if required at a later date. The low bed height and reduced loading angles further increase the versatility of this trailer range.

Specifications

Choose from six model options in total. Dimensions and unladen weights shown are for standard models without dropsides fitted.

Model Tyres Gross Weight Unladen Weight Internal Length Internal Width Overall Length Overall Width
TB4021-302 195/55R10 3000kg 719kg 4.07m/13'4" 2.04m/6'8" 5.80m/19' 2.04m/6'8"
TB4021-352 195/60R12 3500kg 745kg 4.07m/13'4" 2.04m/6'8" 5.82m/19'1" 2.04m/6'8"
TB4621-302 195/55R10 3000kg 764kg 4.64m/15'3" 2.04m/6'8" 6.17m/20'3" 2.04m/6'8"
TB4621-352 195/60R12 3500kg 789kg 4.64m/15'3" 2.04m/6'8" 6.20m/20'4" 2.04m/6'8"
TB5021-353 195/55R10 3500kg 895kg 5.10m/16'9" 2.04m/6'8" 6.60m/21'8" 2.04m/6'8"
TB5521-353 195/55R10 3500kg 878kg 5.57m/18'3" 2.04m/6'8" 7.11m/23'4" 2.04m/6'8"

Features

Chassis
The underside of the trailer features a galvanized steel chassis and drawbar, for longlasting corrosion protection.
Floor
Phenol-coated on both sides, our ply platform floors feature an embossed grip pattern on the upper surface.
Beam Axle & Leaf Spring Suspension
The Ifor Williams beam axle system increases stability and reliability whilst ensuring minimum maintenance.
Spare Wheel
A mounting bracket and spare wheel are fitted as standard to all Ifor Williams trailers for complete peace of mind.
Coupling Head
The lockable low-profile coupling head ensures optimum clearance of 4×4 rear doors.
Loading Skids
Fitted to the GP and GX models, these are adjustable for width when deployed.
